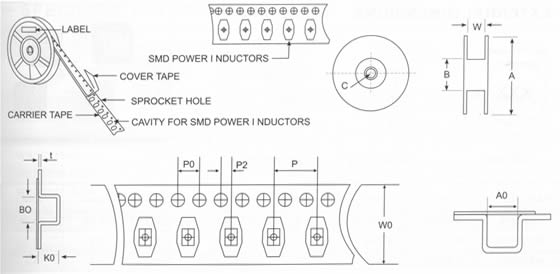

〓 CDH TYPE查看包装说明
|
| ● EXTERNAL DIMENSIONS UNIT：mm(外形尺寸) |
|
|
 |
| PARTNO. |
A(max) |
B(max) |
C(max) |
D |
E |
F |
G |
H |
I |
| CDH105 |
10.3 |
10.4 |
5.0 |
7.7 |
3.O |
1.2 |
3.6 |
1.7 |
7.3 |
|
CDH105 TYPE
|
| ●SPECIFICATION TABLE |
PART
NUMBER
品名 |
INDUCTANCE
(μH)
电感值 |
DCR(max)
(Ω)
直流电阻 |
IDC(A)(max)
△L/L=-25%;△t=40℃
定格电流 |
TEST FREQ.
测试频率 |
| CDH105-100N |
10 |
0.026 |
3.45 |
100KHZ |
| CDH105-120N |
12 |
0.032 |
3.40 |
100KHZ |
| CDH105-150N |
15 |
0.040 |
2.83 |
100KHz |
| CDH105-180N |
18 |
0.046 |
2.62 |
100KHZ |
| CDH105-220N |
22 |
0.059 |
2.44 |
100KHZ |
| CDH105-270N |
27 |
0.065 |
2.24 |
100KHZ |
| CDH105-330N |
33 |
0.081 |
1.88 |
100KHz |
| CDH105-390N |
39 |
0.103 |
1.70 |
100KHZ |
| CDH105-470N |
47 |
0.122 |
1.56 |
100KHZ |
| CDH105-560N |
56 |
0.145 |
1.39 |
100KHZ |
| CDH105-680N |
68 |
0.193 |
1.36 |
100KHZ |
| CDH105-820N |
82 |
0.219 |
1.20 |
100KHZ |
| CDH105-101N |
100 |
0.247 |
1.09 |
100KHZ |
| CDH105-121N |
120 |
0.298 |
1.00 |
100KHz |
| CDH105-151N |
150 |
0.355 |
0.91 |
100KHZ |
| CDH105-181N |
180 |
0.393 |
0.84 |
100KHZ |
| CDH105-221N |
220 |
0.484 |
0.75 |
100KHz |
| CDH105-271N |
270 |
0.633 |
0.68 |
100KHZ |
| CDH105-331N |
330 |
0.780 |
0.60 |
100KHZ |
| CDH105-391N |
390 |
0.958 |
0.57 |
100KHZ |
| CDH105-471N |
470 |
1.220 |
0.50 |
100KHZ |
| CDH105-561N |
560 |
1.352 |
0.47 |
100KHZ |
| CDH105-681N |
680 |
1.519 |
0.43 |
100KHZ |
| CDH105-821N |
820 |
1.694 |
0.39 |
100KHZ |
| CDH105-102N |
1000 |
1.964 |
0.35 |
100KHZ |
|
| ● PART NUMBERING SYSTEM(品名系统) |
 |
1 SERIES NAME 品名 S指备银系列，A指品名号
2 DIMENSIONS 尺寸 外围x高度
3 INDUCTANCE 电感值 前两位属有效数字，第三位表零的个数
4 TOLERANCE CODE 公差 J：±5％，K：±10％，L：±15％M：±20％，P：±25％，N：±30％
5 PACKING CODE 包装方式 R：Tape&Reel(卷装)B：In Bulk (袋装) |
|
● FEATURES(特性)
Various high power inductors are superior to be high satu ration for surface mounting.
具有高功率、高饱和电流、低阻抗、小型化之特点。
● APPLICATl0NS(用途)
Power supply for VTR，OA equipment Digital camera，LCD television set notebook PC，portable communication equipments，DC／DC converters，eT-2.
录影机、OA仪器，数码相机，液晶电视，笔记本电脑，小型通信机器，DC/DC变压器之电源供应器等。
|
| ★ Design As Gustomer's Requested Specifications. ( 根据客户要求参数来设计！) |
